The Indoor LED Screen from Creative Ads Agency Pvt. Ltd. is designed to deliver engaging visual experiences that capture audience attention and enhance brand communication. Featuring high brightness, exceptional contrast performance, and a refresh rate above 3840Hz, this Indoor LED Video Wall solution is ideal for retail environments, corporate spaces, and premium indoor digital display applications.
The Indoor LED Screen is engineered to transform conventional indoor digital displays into captivating visual experiences. As businesses increasingly focus on customer engagement and immersive communication, Indoor LED display technology has become a powerful tool for attracting attention and creating memorable brand interactions.
With a module resolution of 80 × 40 dots and a pixel density of 62,500 dots per square meter, this display solution delivers clear and vibrant visual performance. Brightness exceeding 4500 cd/sqm combined with a refresh rate above 3840Hz supports smooth content playback and consistent image quality.

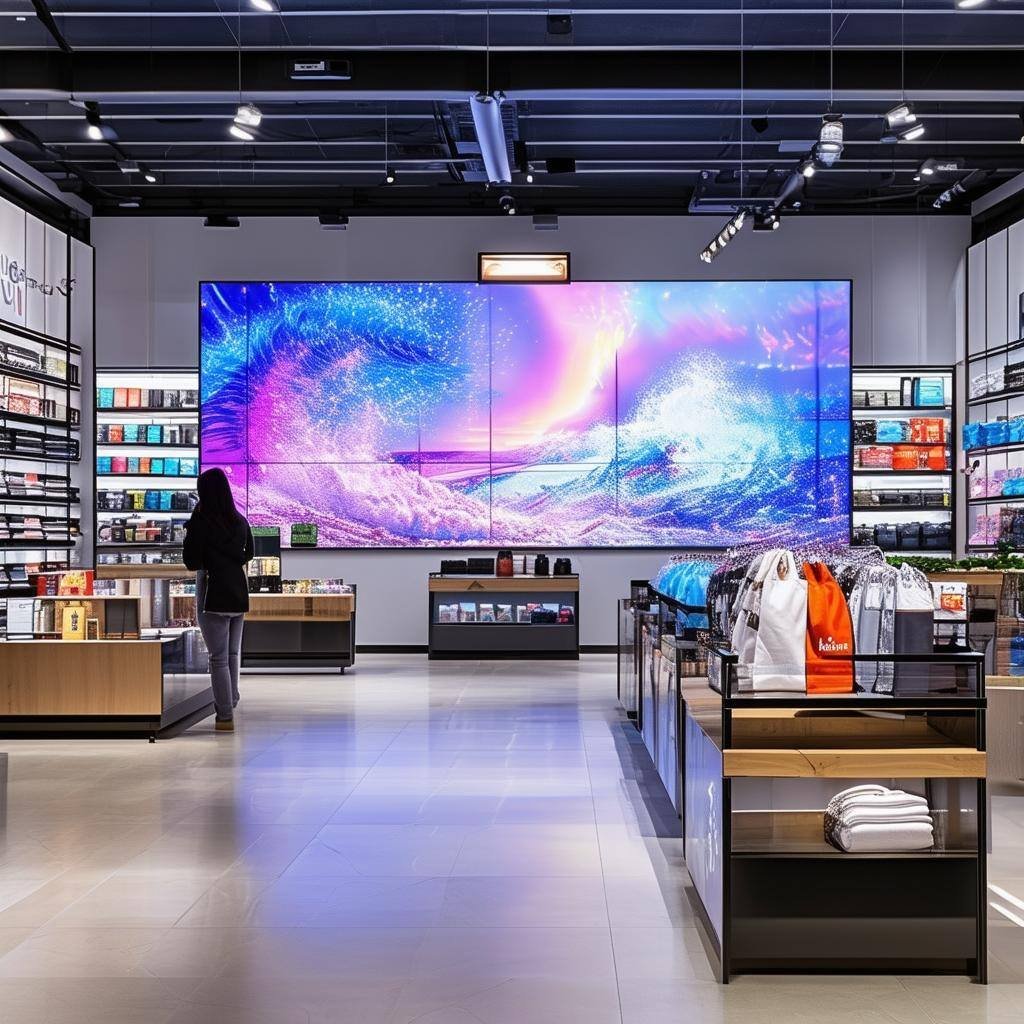

Indoor LED Screens are widely used in shopping malls, retail stores, experience centres, museums, corporate lobbies, entertainment venues, exhibition halls, and digital branding environments. They provide businesses with an innovative platform to showcase products, services, and promotional campaigns in a visually impactful format.
Manufactured and supplied by Creative Ads Agency Pvt. Ltd., this Indoor LED Video Wall combines advanced display technology, operational reliability, and energy-efficient performance. It is designed to help organisations create immersive indoor experiences while supporting long-term display requirements.
Designed to create engaging and attention-grabbing visual content for indoor environments.
Brightness above 4500 cd/sqm supports vivid visual presentation and content visibility.
Refresh rate exceeding 3840Hz enables smooth content playback and improved visual consistency.
62,500 dots per square meter help deliver clear and impactful content.
A contrast ratio greater than 5000:1 enhances image depth and visual clarity.
Operational lifespan exceeding 100,000 hours supports long-term deployment.
Grade 1 energy consumption helps optimise operating costs.
Designed for demanding commercial and institutional display environments.
Creates visually compelling experiences that immediately attract viewers.
Supports immersive storytelling and impactful promotional campaigns.
Ideal for flagship retail locations, experience centres, and corporate environments.
High refresh rate contributes to seamless and professional content presentation.
Indoor visual experiences can increase interaction and audience retention.
Designed for continuous operation in professional indoor environments.
Supports a wide range of commercial, corporate, and entertainment use cases.
Helps maximize the effectiveness of digital display infrastructure.
Creative Ads Agency Pvt Ltd offers a wide range of Indoor LED Screen solutions designed for conference rooms, auditoriums, educational institutions, command centres, studios, and commercial display environments.
| SPECIFICATIONS | P1.5 LED Screen | P1.8 LED Screen | P2 LED Screen | P2.5 LED Screen | P3 LED Screen | P4 LED Screen |
|---|---|---|---|---|---|---|
| Product Module |
|
|
|
|
|
|
| Pixel Pitch (mm) | 1.56 mm | 1.87 mm | 2 mm | 2.5 mm | 3 mm | 4 mm |
| Type of LED | Flip RGB | Flip RGB | SMD1515 | SMD1919 | SMD2020 | SMD2121 |
| Size of Module (mm) | 150 × 168.75 | 150 × 168.75 | 320 × 160 | 320 × 160 | 192 × 192 | 320 × 160 |
| Module Resolution (Dots) | 96 × 108 | 80 × 90 | 160 × 80 | 128 × 64 | 104 × 52 | 80 × 40 |
| Brightness (cd/sqm) | 600 cd/m² | 600 cd/m² | > 600 | > 600 | > 600 | > 600 |
| Optimum Viewing Distance (m) | 1.5 m | 1.8 m | 2–4 m | 2–4 m | 3–5 m | 4–6 m |
| Pixel Density (Dots/sqm) | 409,600 | 284,444 | 250,000 | 160,000 | 111,111 | 62,500 |
| Pixel Constitution | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Scan Mode | 1/54 | 1/40 | 1/40 Scanning | 1/32 Scanning | 1/32 Scanning | 1/20 Scanning |
| Refresh Rate (Hz) | 3840 Hz | 3840 Hz | > 3840 | > 3840 | > 3840 | > 3840 |
| Max. Power Consumption | 336 W/m² | 290 W/m² | ≤ 750W/sqm | ≤ 750W/sqm | ≤ 750W/sqm | ≤ 750W/sqm |
| Energy Consumption Level | Avg. 112 W/m² | Avg. 97 W/m² | Grade 1 | Grade 1 | Grade 1 | Grade 1 |
| IP Grade / Gray Scale Bit | IP40 / IP21 | IP40 / IP21 | 13–14 Adjustable | 13–14 Adjustable | 13–14 Adjustable | 13–14 Adjustable |
| Power Supply | AC 100–240 V | AC 100–240 V | 5V 60A | 5V 60A | 5V 60A | 5V 60A |
| Contrast Ratio | 1500 : 1 | 1500 : 1 | > 5000:1 | > 5000:1 | > 5000:1 | > 5000:1 |
| Working Voltage (+/-10%) | 100–240 V | 100–240 V | 180–220V | 180–220V | 180–220V | 180–220V |
| Environment Temperature | -10°C ~ +40°C | -10°C ~ +40°C | 10%–95% | 10%–95% | 10%–95% | 10%–95% |
| Life Span | 100,000 Hours | 100,000 Hours | > 1,00,000 Hrs | > 1,00,000 Hrs | > 1,00,000 Hrs | > 1,00,000 Hrs |
| Quick Enquiry | Get Quote | Get Quote | Get Quote | Get Quote | Get Quote | Get Quote |
Successful deployment of an Indoor LED Screen begins with careful planning of display location, audience viewing distance, content strategy, and installation requirements. Since Indoor LED displays rely heavily on visual perspective, proper positioning is important for achieving the intended immersive effect.
The mounting structure should be suitable for the display size and installation environment. Electrical infrastructure, content delivery systems, and display management solutions should be evaluated before installation.
Routine maintenance should include inspections of display modules, power systems, controllers, and signal connections. Scheduled maintenance helps maintain optimal performance and minimise operational interruptions.
Content should be developed specifically for Indoor display applications to maximise visual impact and audience engagement. Businesses can work with Creative Ads Agency’s technical team to ensure proper deployment, system integration, and long-term reliability.
If you are considering an LED Display, Video Wall, Digital Standee, or Custom Screen for your space, our team at Creative Ads Agency Pvt. Ltd. is ready to help you plan the right solution. We work with buyers across all stages, from initial research and project planning to final installation and long-term support.
Reach out to us through any of the options below. We typically respond promptly and will guide you through the solutions most suitable for your environment, audience, and business objectives.
